Precision Horizontal Machining Center
Main features
Precision horizontal machining center, a major technical equipment - high-end CNC machine tool field, is a product independently developed by Jinan First Machine Tool Co., Ltd. This series of products has significant technical characteristics such as precision, high reliability, and high rigidity.
Main components
The maintenance of a complete set of CNC equipment of precision horizontal machining center requires not only advanced testing equipment and maintenance means, but also scientific and technological personnel with certain mechanical, hydraulic design, mechanical repair, electrical design, and debugging levels. It is usually composed of mechanical, electrical, optical, hydraulic, pneumatic and other parts, namely mechanical system, electrical system, measurement system, hydraulic system, and pneumatic device.
Application
Precision horizontal machining center is suitable for precision and efficient processing of complex shaped special-shaped parts and small and medium-sized box parts in defense and military industry, aerospace, mold manufacturing, IT industry, automobile manufacturing and other industries, replacing imports, and the product technology level has reached the international advanced level.
Specifitions
| Machine tool specification | Unit | YCWJ-1200 |
| X/Y/Z axis stroke | mm | 1800/1600/1100 |
| Spindle Center to Worktable | mm | 180-1600 |
| Spindle end face to workbench center | mm | 400-1500 |
| Turntable area | mm | 1300X1300 |
| Turntable indexing (optional) | ° | 90°--1°--0.001° |
| Positioning accuracy of turntable | ″ | ±20″ |
| Repetitive positioning accuracy | ″ | ±6″ |
| Milling spindle | BT | BT50 |
| U-axis rotary disk speed | r/min | 0-60 |
| Milling spindle speed | r/min | 0-750r/min |
| U-axis flat disk diameter | mm | φ1000 |
| Spindle transmission mode | | Gear drive |
| Guide rail form | | Double rectangular guide rail |
| Tool magazine (optional) | Hold | 10 tool positions-24 hat tool magazines-24 disc tool magazines. |
| Numerical control system (optional) | | Guangshu-Kandy-New Generation |
| Servo motor X/Y/Z/B | Nm | 30/30/30/18 |
| Spindle servo motor | KW | 22KW |
| Protective form | | No-semi-protection-full protection |
| Overall dimensions of machine tool (length× width× height) | mm | 4000×5000×4000 |
| Machine tool weight | KG | About 25000KG |

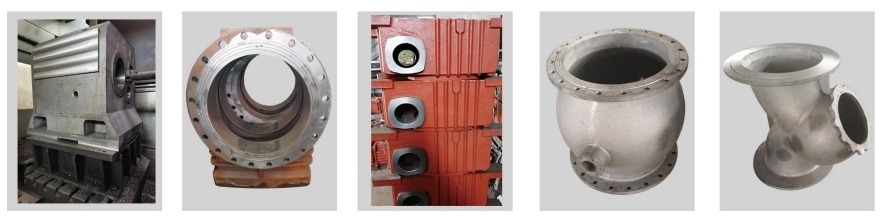

Processed products
